Discover high-efficiency desktop mini blown film extruder from our latest collection. Engineered for precision and durability, our machines are ideal for processing rubber and plastic materials, ensuring consistent quality and reliable performance for various industrial applications. Trust us for your production needs.

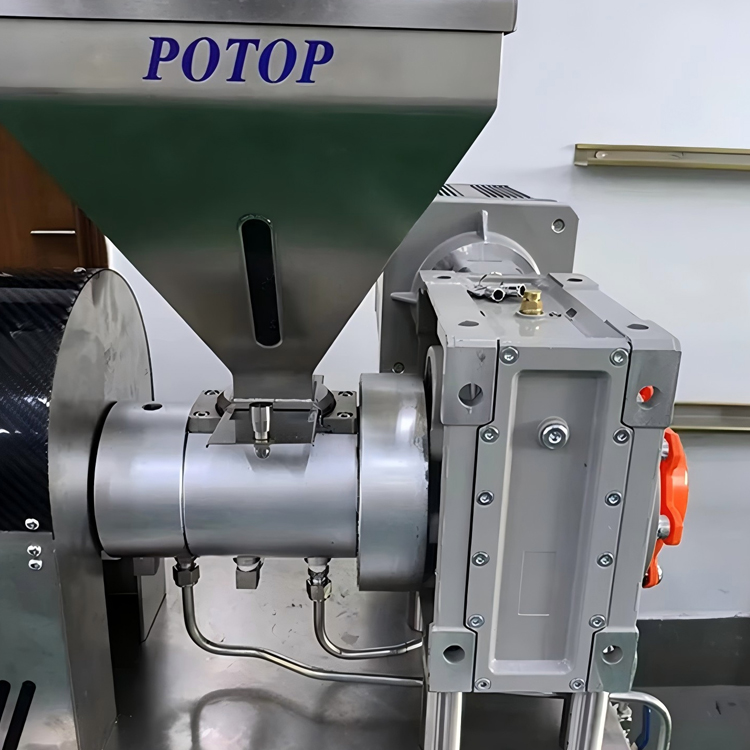

High-precision servo motor-driven extruder screw with continuous variable speed control for stable plasticization and uniformity
CAE-optimized die geometry featuring streamlined flow channels (zero dead zones) to ensure homogeneous material distribution
Electrically adjustable film frame for simplified film threading and process fine-tuning

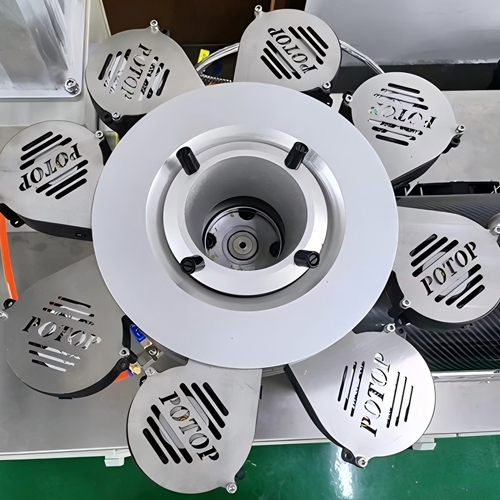

Patented pressure vector control air ring technology for energy efficiency and ultra-low noise operation

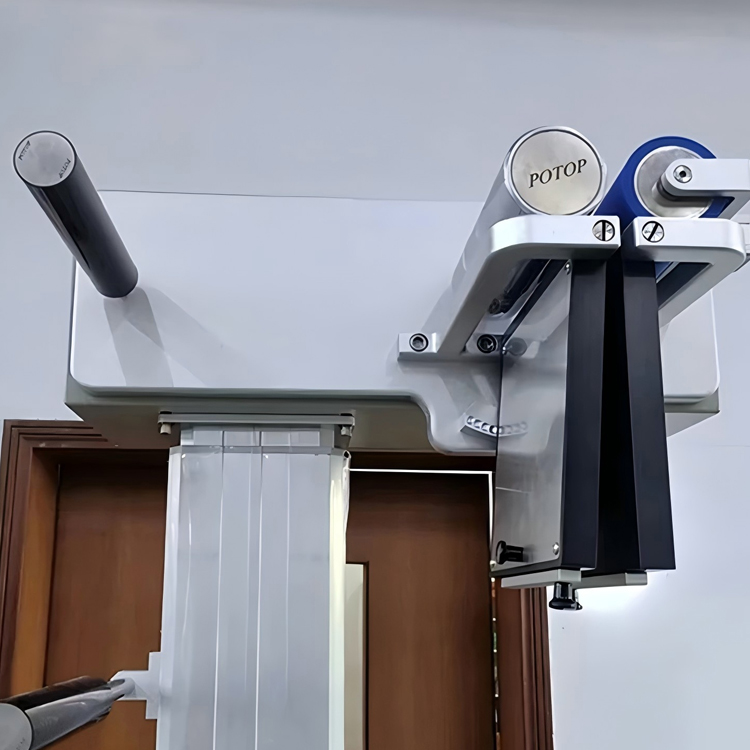

Servo-driven haul-off system ensures precise and stable longitudinal film speed control

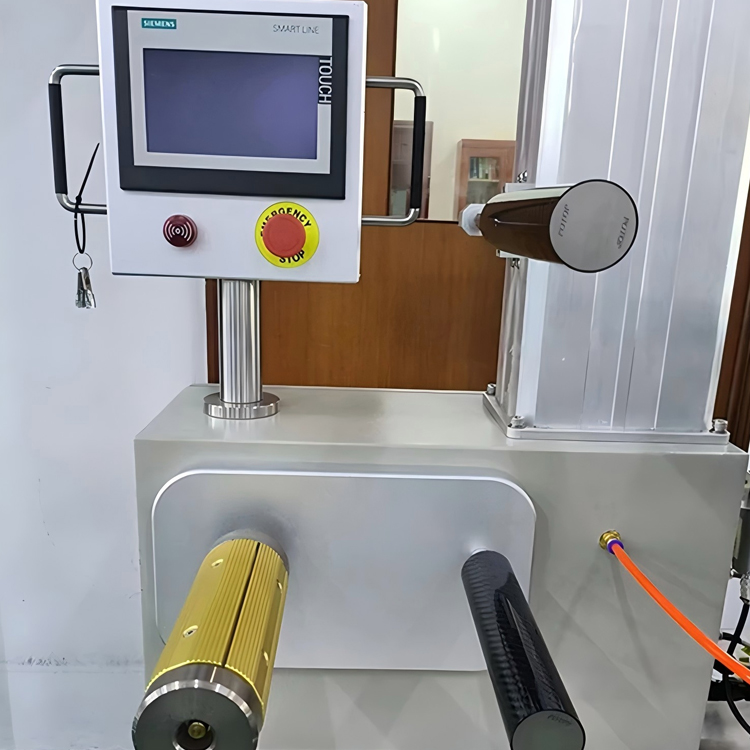

Industrial-grade PLC & HMI integration with intuitive touchscreen interface for reliable operation and seamless user interaction
Real-time data acquisition & visualization (pressure, temperature, line speed，etc) for enhanced process monitoring
Preparation of single-layer tubular films
Optimization experiments for blown film production processes
Performance testing of polymer materials in blown film applications
Testing of color masterbatch dispersion performance
R&D for new material formulations
Model | FBVI-20/22 |
Serial No. | FBV-001 |
Applicable Materials | PE, POF, PVC, LDPE, LLDPE, etc |
Screw Diameter | φ20 mm |
Screw L/D Ratio | 28 |
Screw Speed | 0-120 rpm |
200 mm | |
Product Thickness | 0.02-0.15mm |
Roller Face Width | 220 mm |
Line Speed | 0-10 m/min |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5% FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling Water | Soft water，ΔP: 2.5–4.0 bar |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 30 kW |
Dimensions (L×W×H) | 1715 mm×610 mm×2000 mm |
Net Weight | Approx. 1200 kg |
