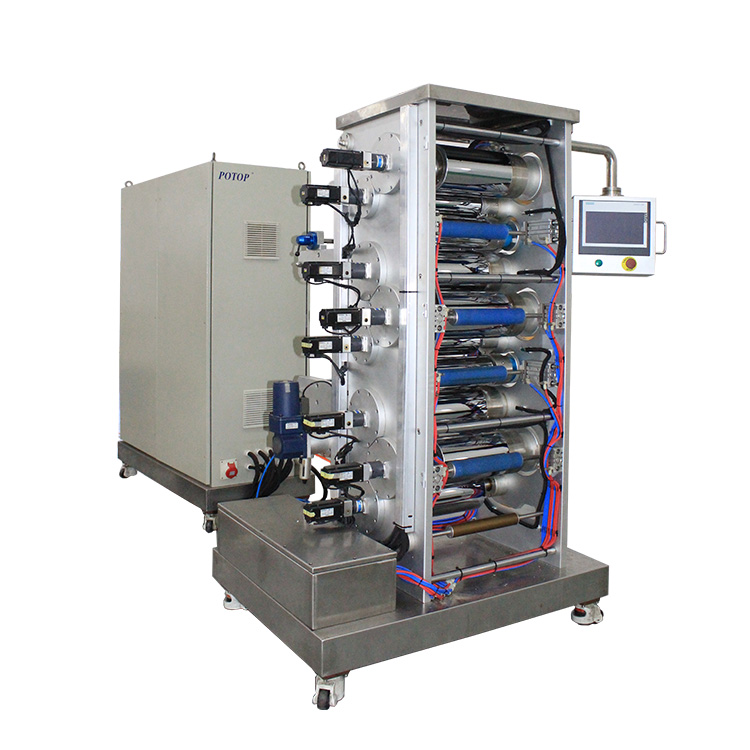

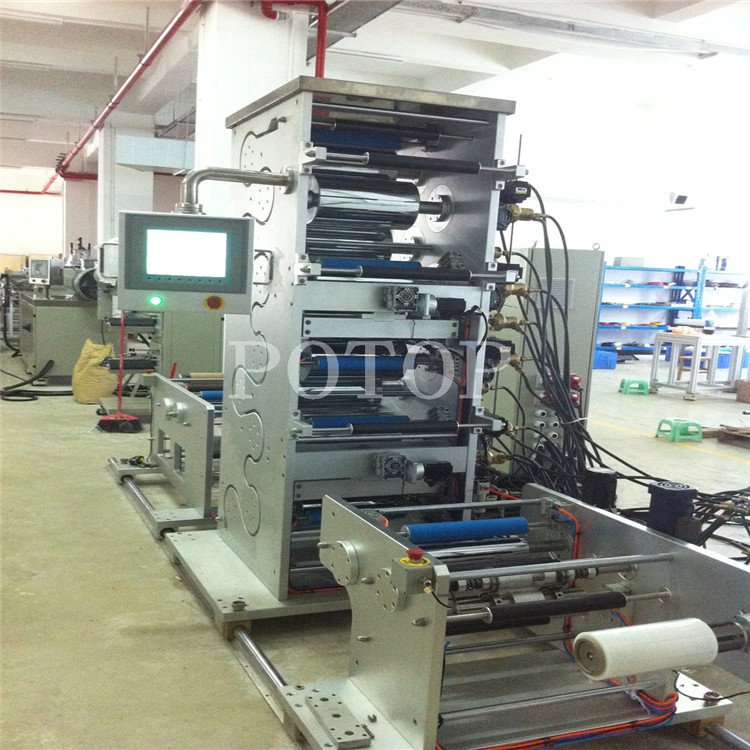

POTOP lab longitudinal tensile test line, a vertical, multi-functional device for film stretching tests. Ideal for R&D, this MDO machine processes high-temperature materials like PEEK/PEK/PI, ensuring reliable performance in film property analysis.
Ø Innovative structural design enables overall movement of stretching rollers, with adjustable stretching spacing.
Ø Achieves near "zero-gap" stretching, expanding process flexibility.
Ø Full digital network control technology ensures synchronized multi-roller operation and precise speed ratio adjustment.
Ø Independent/online control for each roller via linkage status selection, user-friendly operation.
Ø Industrial-grade PLC and HMI integration ensures stable system performance and intuitive touchscreen interaction.
Ø Modular structure with open interfaces for seamless integration with upstream/downstream equipment, enabling inline stretching.
Ø Vertical design minimizes footprint; horizontal models available upon request.
Ø Customizable roller configurations to suit different film stretching processes.
Ø R&D of new film products
Ø Formulation design of novel film materials
Ø MDO stretching performance testing and experiments.
Ø Process research and parameter optimization for film MDO stretching.
Model | FOVU-35/02 |
Serial No. | FOP-002 |
Applicable Materials | PE, PP, PET, PVDF, etc |
Stretching Points | 2 |
Max. Stretching Ratio | 10:1 (adjustable) |
Stretching Gap | 2.5 mm-200 mm |
Roller Face Width | 350 mm |
Outlet Line Speed | 0-30 m/min |
Temperature Control Range | RT - 160°C |
Temperature Accuracy | ±1℃ |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Gas Supply | Compressed air: 6-8bar, dry, oil-free |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 48 kW(incl. liquid medium roller temp. regulator) |
Dimensions (L×W×H) | 2880 mm×2720 mm×2000 mm |
Net Weight | Approx.5000 kg |
