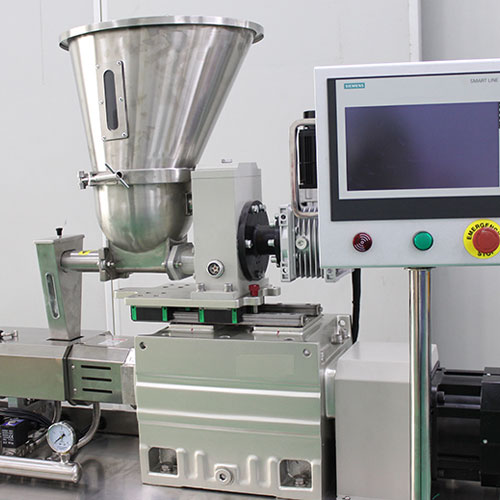

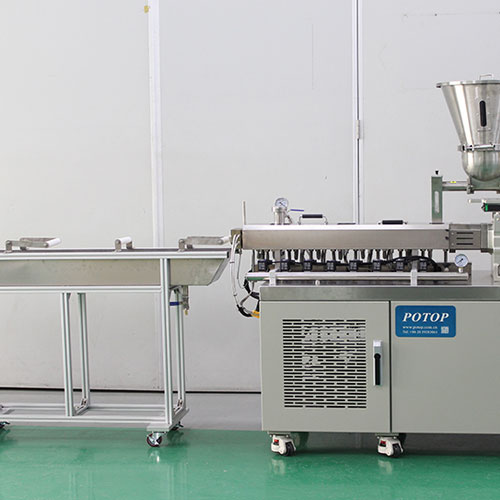

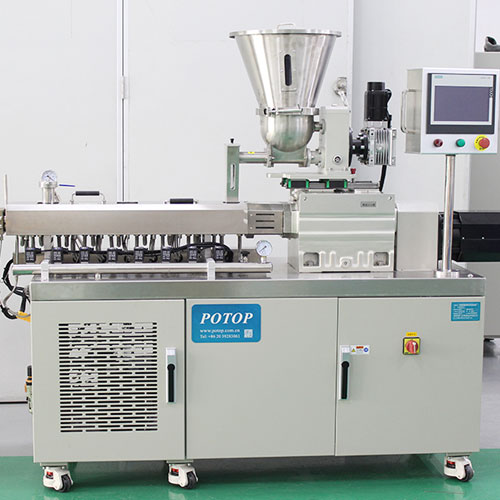

POTOP's lab twin screw pelletizer ensures uniform film production with precise temperature and thickness control. Ideal for R&D and small-batch processing, its durable design and user-friendly operation make it perfect for labs and manufacturers. Reliable, space-saving, and adaptable for various material tests.
Ø Servo motor-driven screws for stepless precision speed adjustment and stable operation
Ø Modular screw structure, customizable for experimental process requirements
Ø Split-type barrel, quick-open head, and screen changer for efficient material cleaning
Ø Integrated vacuum exhaust, cooling system, and compact host design
Ø Industrial-grade PLC and HMI for stable operation and user-friendly touch control
Ø Real-time measurement and graphical display of critical experimental data for easy monitoring
Ø Optional melt pump for high-precision, high-pressure extrusion
Ø Calendering experiments for polymer materials
Ø Research and optimization of calendering processes and parameters
Ø Performance testing of new materials in calendaring
Ø Filling, blending, modification, and reinforcement experiments for polymer materials
Ø Preparation of glass fiber/carbon fiber-reinforced composites
Ø Granulation of organic/inorganic materials (e.g., masterbatch, carbon powder, magnetic powder)
Ø R&D of ultra-high molecular weight polyethylene (UHMWPE) diaphragm materials
Ø Filling, blending, modification and enhancement experiments of polymer materials
Ø Preparation of new glass fiber and carbon fiber reinforced materials
Ø Granulation of new organic/inorganic materials such as masterbatch, toner, magnetic powder, etc
Ø R&D of new materials for ultra-high molecular weight polyethylene (UHMWPE) separators
Model | MGPL-16/40 |
Serial No. | MGP-001 |
Applicable Materials | Various polymers, organic/inorganic mixtures |
Screw Diameter | φ16mm |
Screw L/D Ratio | 40 |
Screw Speed | 0-300 rpm |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5%FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Strand Count | 2 |
Pellet Length | 3±0.2 mm |
Pellet Diameter | φ1-4 mm |
Cutter speed | 0-800 rpm |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling water | Tap water (not required for air cooling) |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated power | Approx. 13 kW |
Dimensions (L×W×H) | 4800 mm×950 mm×1670 mm |
Net Weight | Approx. 900 kg |
Model | MGPL-22/40 |
Serial No. | MGP-002 |
Applicable Materials | Various polymers, organic/inorganic mixtures |
Screw Diameter | φ21.7 mm |
Screw L/D Ratio | 40 |
Screw Speed | 0-600 rpm |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5%FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Strand Count | 4 articles |
Pellet Length | 3±0.2 mm |
Pellet Diameter | φ1-4 mm |
Cutter speed | 0-800 rpm |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling water | Tap water (not required for air cooling) |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated power | Approx. 25 kW |
Dimensions (L×W×H) | 4800 mm×950 mm×1800 mm |
Net Weight | Approx. 1300 kg |
