The biaxial film stretching machine 5x consists of components such as the clamping assembly, stretching assembly, stretching mechanism movement assembly, thermal oven assembly, pneumatic air curtain assembly, and electrical control system. It can stretch a film sample of a specific size according to the desired stretch ratio at an appropriate temperature and within a specified time, providing data for researchers to analyze. The biaxial film stretching machine developed by Guangzhou Potop is a digitized engineering instrument with good repeatability and precise data. It can operate offline, equivalent to a production line, improving experimental efficiency and shortening product development cycles.

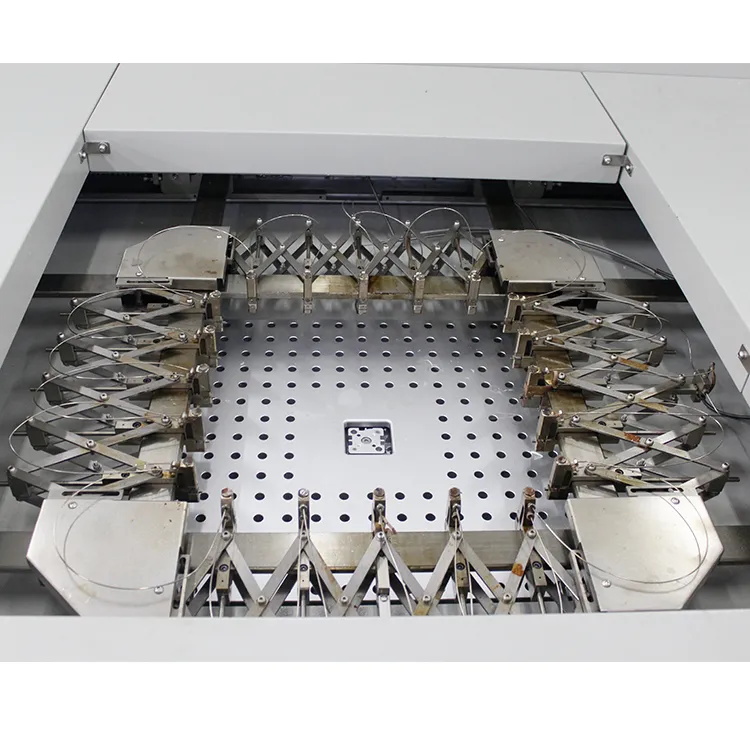

Precision biaxial stretching mechanism, capable of unidirectional or bidirectional constant/variable speed stretching

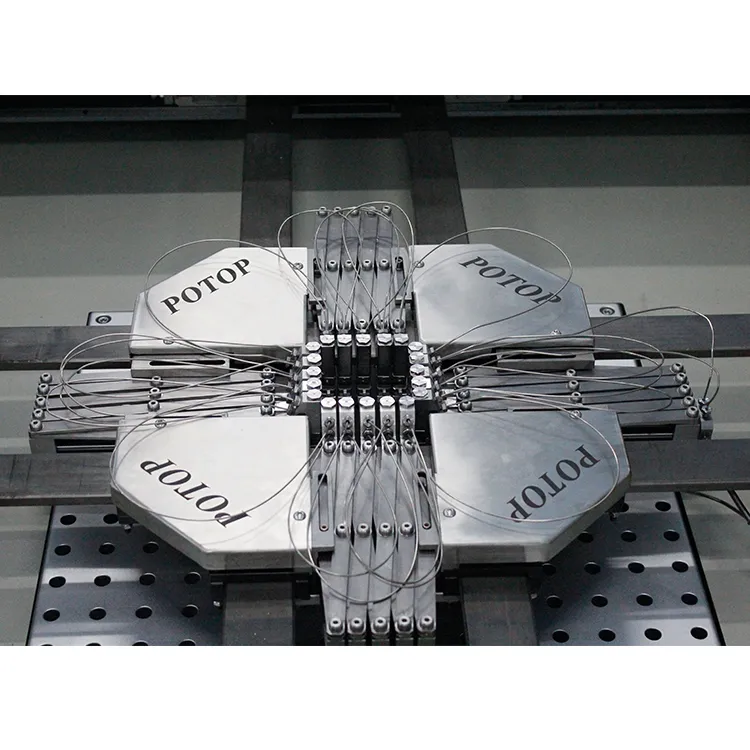

Precision pneumatic clamping, ensuring smooth sample clamping and uniform force distribution
Stress-strain detection and characterization system with good repeatability
Digitally designed and CAE-optimized hot air system, enabling rapid and uniform sample heating
Model | FOCI-05 |
Serial No. | FOB-004 |
Applicable Materials | PE, PP, PET, etc |
Sample Thickness | 0.02-2 mm |
Min. Sample Size | 95 mm × 95 mm |
Max. Stretching Ratio | 5:1 |
Stretching Speed | 0-300 mm/s (stepless adjustable) |
Stretching Force | 1000 N/ axis |
Number of Clips | 5 pcs/ side |
Oven Configuration | 1 unit(expandable based on customer requirements) |
Oven Temperature Range | RT - 250°C |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Gas Supply | High-pressure nitrogen: 3-5MPa Compressed air: 6-8bar,dry,oil-free |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 26 kW |
Dimensions (L×W×H) | 2700mm×1500mm×1700mm |
Net Weight | Approx. 2500kg |
