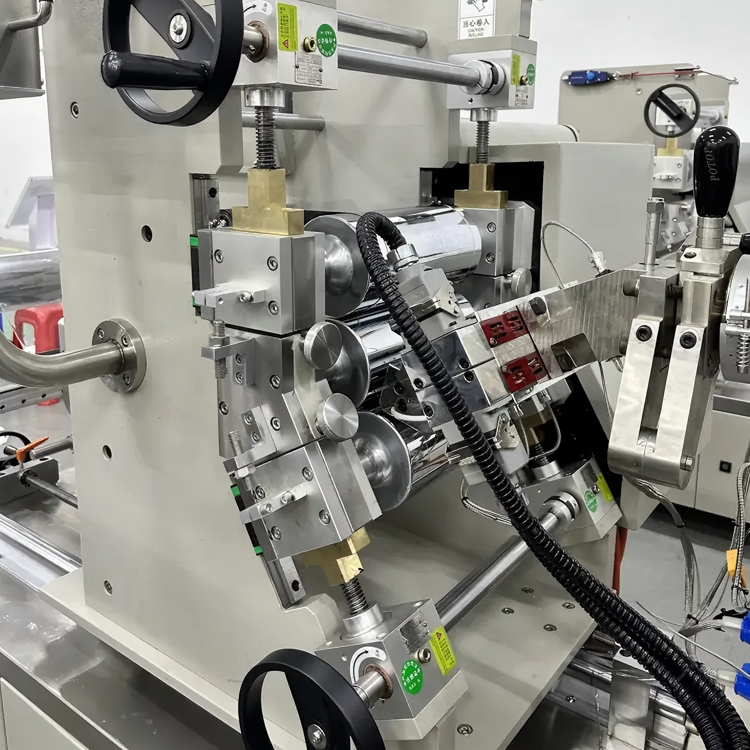

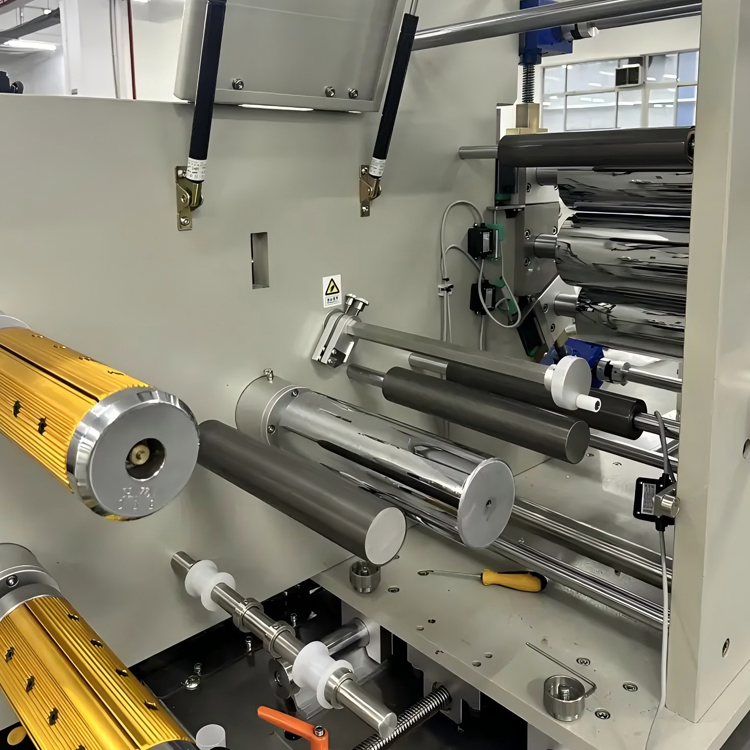

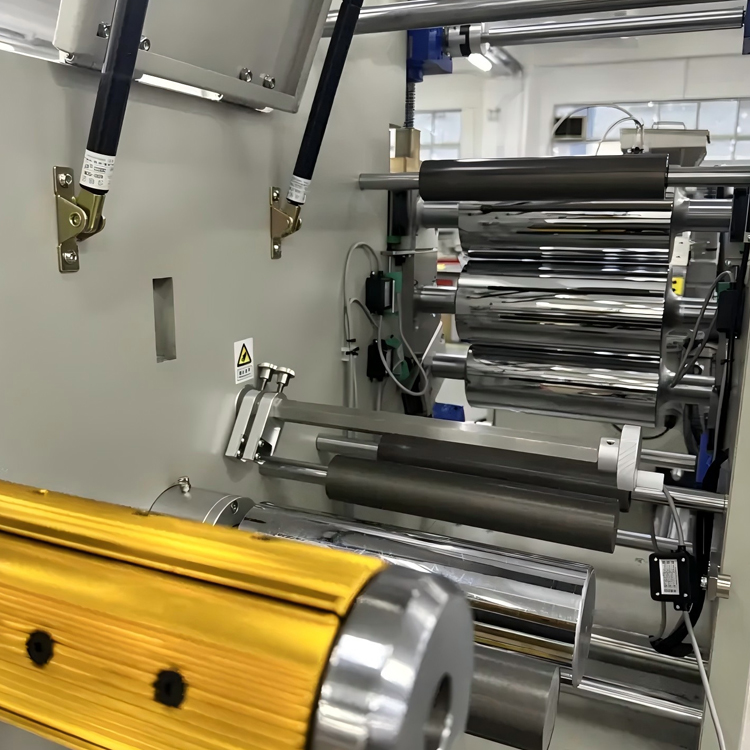

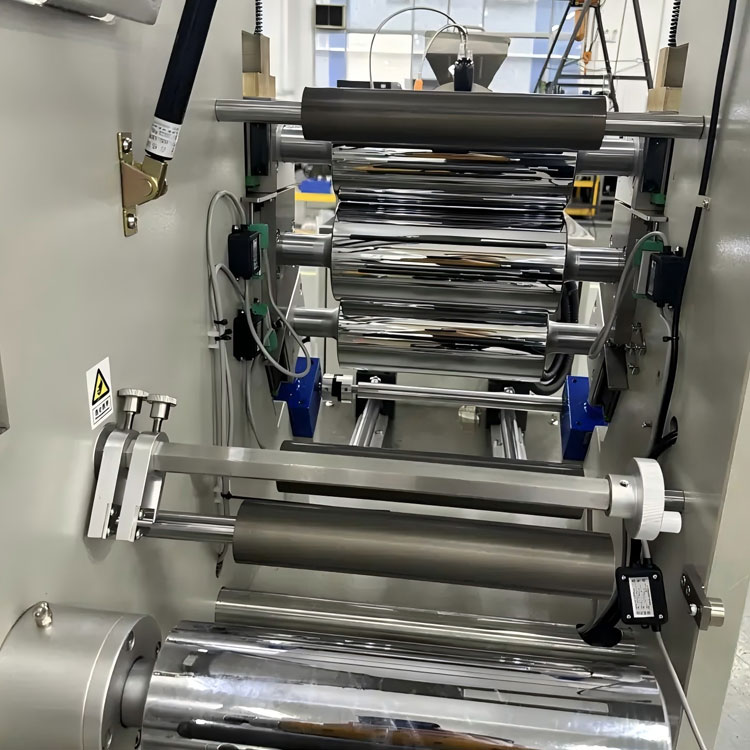

Experience top-quality Lab Small Desktop Sheet Extruder from POTOP. Designed for flexible polymer films like TPU, PET, and PVDF, it delivers consistent, high-quality output with precise control. Built for durability, this user-friendly machine features a robust structure and efficient operation, making it ideal for research and development.
Ø Servo -driven extruder screw with stepless precise speed adjustment, ensuring stable plasticization and uniformity
Ø CAE-optimized die geometry featuring streamlined flow channels (zero dead zones) to ensure homogeneous material distribution
Ø Independent servo motor drives for all power rollers, enabling precise speed control and excellent synchronization.
Ø Continuous adjustment of roller gaps to meet process requirements for different materials
Ø Industrial-grade PLC & HMI integration with intuitive touchscreen interface for reliable operation and seamless user interaction
Ø Real-time data acquisition & visualization for enhanced process monitoring
Ø Ergonomic structural design for enhanced operational convenience.
Ø Optional Configurations
¡ Constant-tension winding unit for high-quality film/sheet winding.
¡ Customizable roller surfaces (embossed, matte) for specialized film finishing.
Ø Calendering experiments for polymer materials
Ø Research and optimization of calendering processes and parameters
Ø Performance testing of new materials in calendering
Model | FPBL-35/30 |
Serial No. | FPS-001 |
Applicable Materials | PE, PP, PS, EVA, TPU, PC, etc |
Screw Diameter | φ30 mm |
Screw L/D Ratio | 30 |
Screw Speed | 0-120 rpm |
Die Lip Width | 200 mm |
Max. Product Width | 150 mm |
Product Thickness | 0.1-0.6 mm |
Roller Face Width | 260 mm |
Roller Gap Adjustment | 0-10 mm |
Line Speed | 0-10 m/min |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5% FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling Water | Soft water，ΔP: 2.5–4.0 bar |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated power | Approx. 25 kW(incl. liquid medium roller temp. regulator) |
Dimensions (L×W×H) | 3000 mm×1030 mm×1830 mm |
Net Weight | Approx. 1600 kg |
