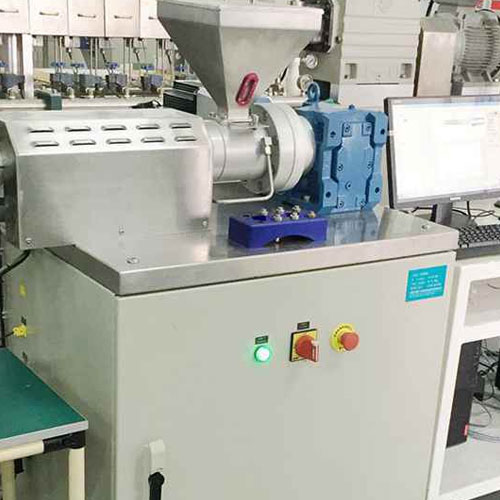

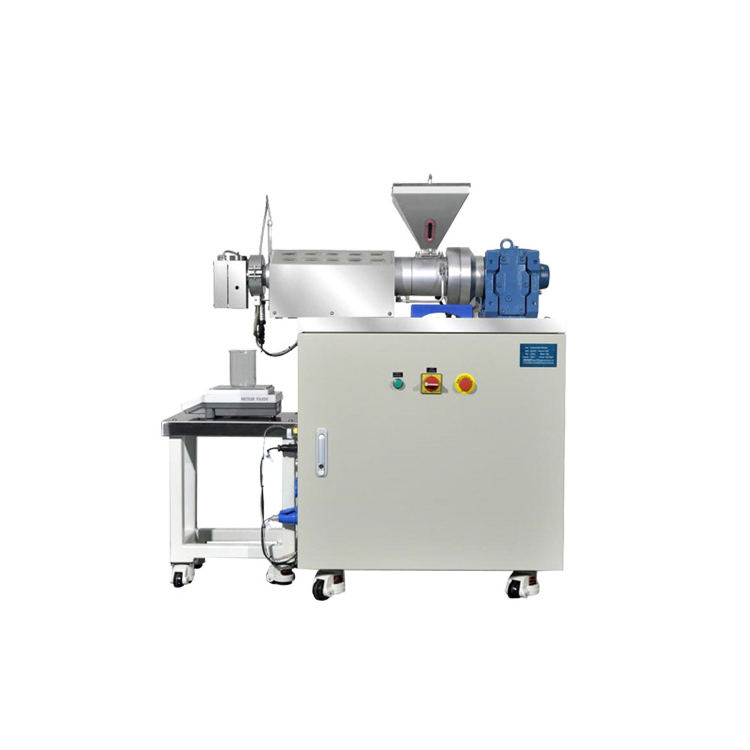

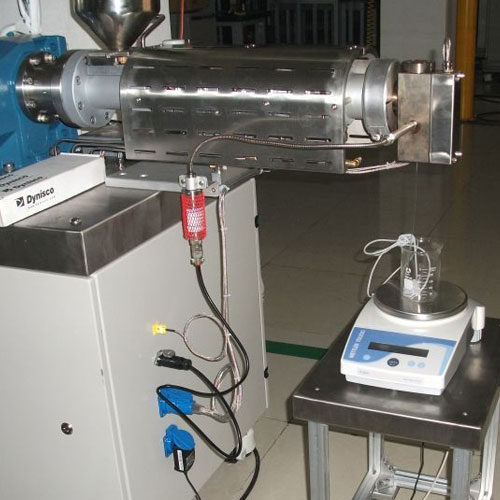

Discover POTOP's capillary rheometer for polymer dynamic rheology testing. With adjustable shear rates and temperature control up to 400°C, it ensures accurate data for melt flow behavior studies. It measures viscosity, studies extrusion swelling, and aids in new product R&D with precise control.
Ø Dedicated capillary die for testing material’s apparent viscosity
Ø Capillary dies with different length-to-diameter ratios for viscosity measurement

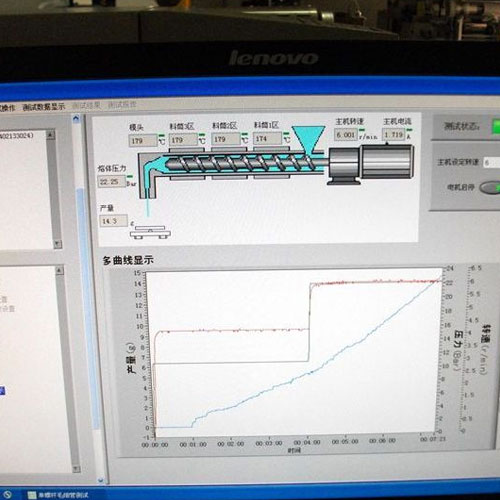

Ø Self-developed proprietary software with powerful functions and user-friendly interface
Ø Ergonomic design for easy operation
Ø Optional narrow-slit die for testing rheological properties under specific flow fields
Ø Optional laser diameter gauge for real-time extrusion diameter monitoring and analysis of material's die swell behavior
Ø Apparent/true viscosity curve testing
Ø Testing and analysis of extrusion swell behavior
Ø R&D for new products and formulations
Ø Optimization of production process parameters
Model | RCSI-25/28 |
Serial No. | RCS-001 |
Applicable Materials | Thermoplastic polymer materials |
Screw Diameter | φ25 mm |
Screw L/D Ratio | 28 |
Screw Speed | 0-100 rpm |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5%FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Weighing Range | 0-4100 g |
Weighing Accuracy | ±0.1 g |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Cooling Water | Soft water，ΔP: 2.5–4.0 bar |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx.14 kW |
Dimensions (L×W×H) | 1410 mm×725 mm×1300 mm |
Net Weight | Approx. 330 kg |
