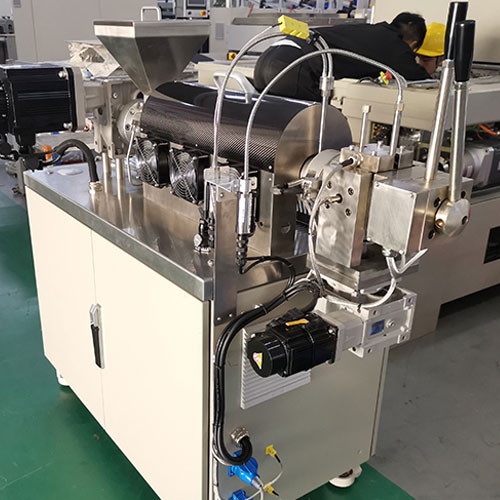

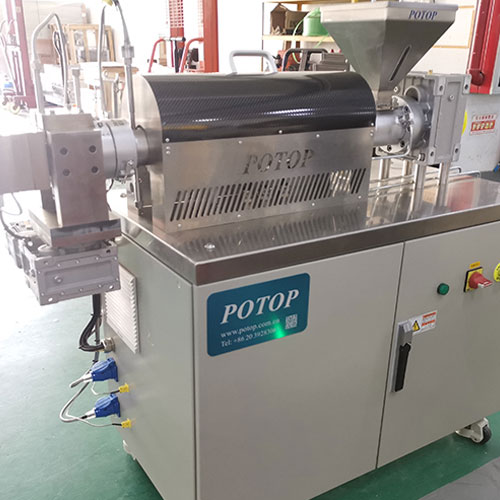

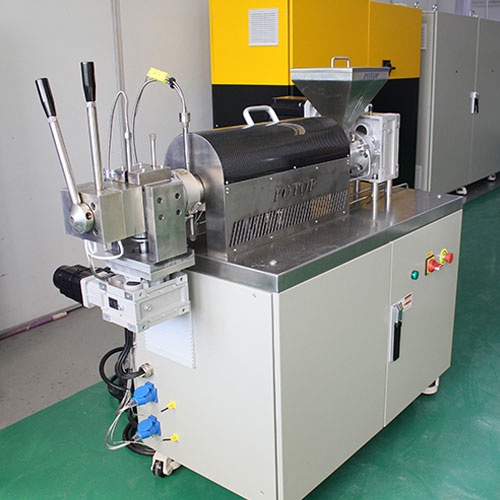

POTOP provides state-of-the-art filter pressure value tester for various industries. Our high-precision equipment ensures accurate and reliable results, enhancing your quality control processes. With user-friendly interfaces and robust construction, POTOP's instruments are designed for efficiency and durability.
Ø High-precision sensing test data processing system
Ø High-performance dedicated software
Ø Ergonomic design, easy to operate
Ø Color-numbered filter
Ø Dispersion testing of filler materials
Ø Quality inspection and control of thin film preparation process
Ø Quality inspection and control of color masterbatch
Model | CMSI-25/03 |
Serial No. | CMS-001 |
Applicable Materials | PP, PA6, PA66, PET, PS, PE, etc |
Screw Diameter | φ25 mm |
Screw L/D Ratio | 28 |
Screw Speed | 0-120 rpm |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Melt Pump Speed | 0-75 rpm |
Melt Pump Rated Flow | 3 cc |
Melt Pump Driving Power | 0.75 kW |
Melt Pump Pressure Range | Inlet: 0-100 bar; Outlet: 0-300 bar |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5% FS |
1# Filter Plate | Double-layer structure, filter mesh 615×108 |
2# Filter Plate | Double-layer structure, filter mesh 615×132 |
3# Filter Plate | Triple-layer structure, filter mesh 165×1400 |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Cooling Water | Soft water，ΔP: 2.5–4.0 bar |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 14.5 kW |
Dimensions (L×W×H) | 1450 mm×725 mm×1300 mm |
Net Weight | Approx. 360 kg |
