POTOP offers precision laboratory and industrial testing equipment for rubber, plastic, and polymer industries. Our high-accuracy machines feature automated controls, robust construction, and energy-efficient operation, ensuring reliable performance in quality control.

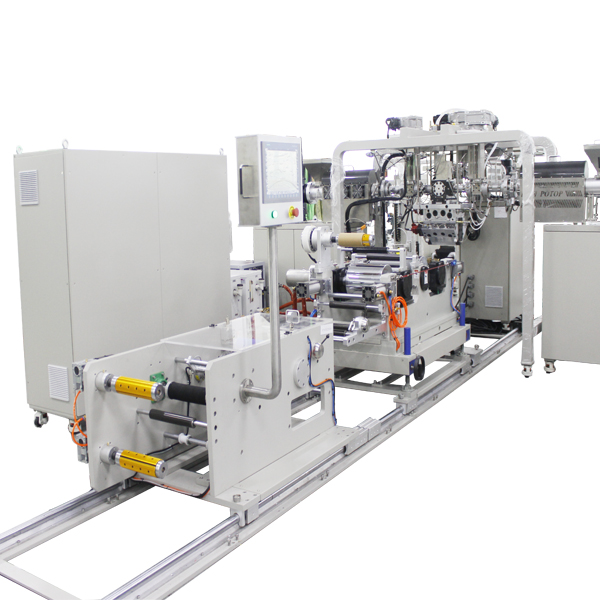

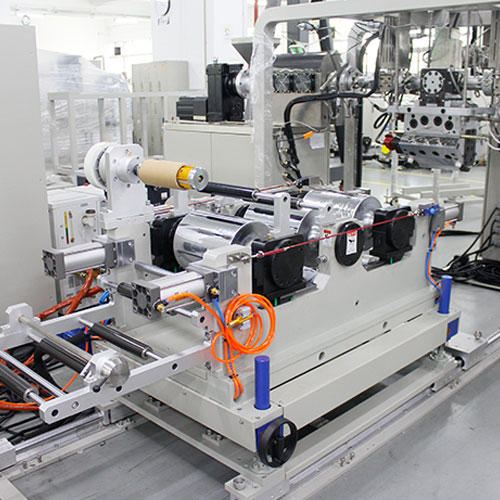

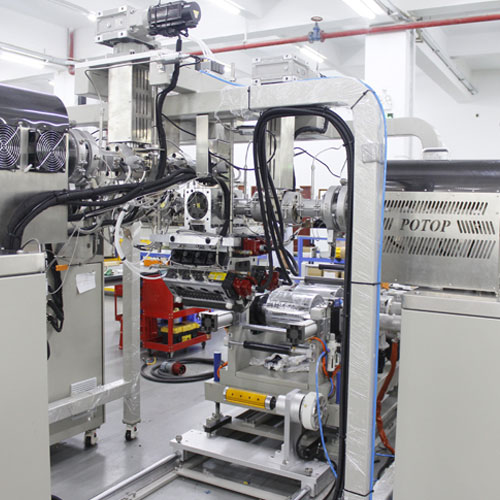

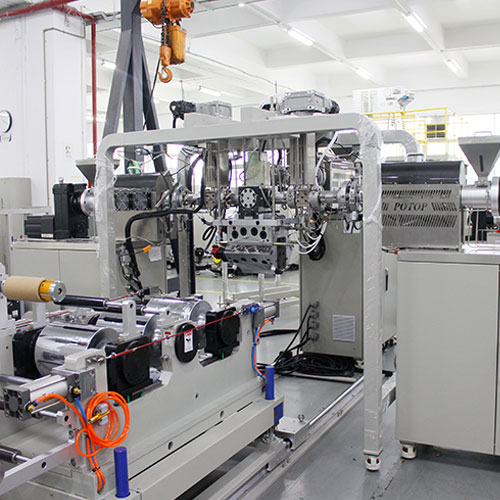

High Precision and Repeatability: Our advanced lab multi-layer co-extrusion delivers accurate, ISO-compliant results, ensuring reliable quality control in rubber, plastic, and polymer industries.
Robust Industrial Design: Built with heavy-duty materials and corrosion-resistant components, our equipment withstands harsh production environments while maintaining long-term durability.
Intelligent Automation: Features like touchscreen controls, programmable workflows, and real-time data logging minimize manual errors and boost operational efficiency.
Customizable Solutions: From automotive sealants to medical-grade plastics, we tailor machinery specifications (e.g., temperature ranges, pressure settings) to meet niche industry demands.
Energy and Cost Efficiency: Optimized power consumption and low-maintenance designs help reduce operational costs without compromising performance.
Model | FDCL-25/35 |
Serial No. | FDC-002 |
Applicable Materials | PE, PP, PET, PA, TPU, ETFE, etc |
Screw Diameter | φ25 mm (all units are the same) |
Screw L/D Ratio | 28 |
Screw Speed | 0-120 rpm |
Die Layer Configuration | A/B/C (3-layer,, customizable) |
Die Lip Width | 300 mm |
Max. Product Width | 250 mm |
Product Thickness | 0.05-0.15 mm |
Roller Face Width | 350 mm |
Line Speed | 0-10 m/min |
Barrel Temperature | ≤350°C |
Temperature Control Accuracy | ±1℃ |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5% FS |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling Water | Soft water，ΔP: 2.5–4.0 bar |
Operating Environment | 10–40℃, ≤80% RH (non-condensing) |
Rated Power | Approx. 84 kW (incl. liquid medium roller temp. regulator) |
Dimensions (L×W×H) | 6120mm×4580mm×2240mm |
Net Weight | Approx. 7900 kg |
