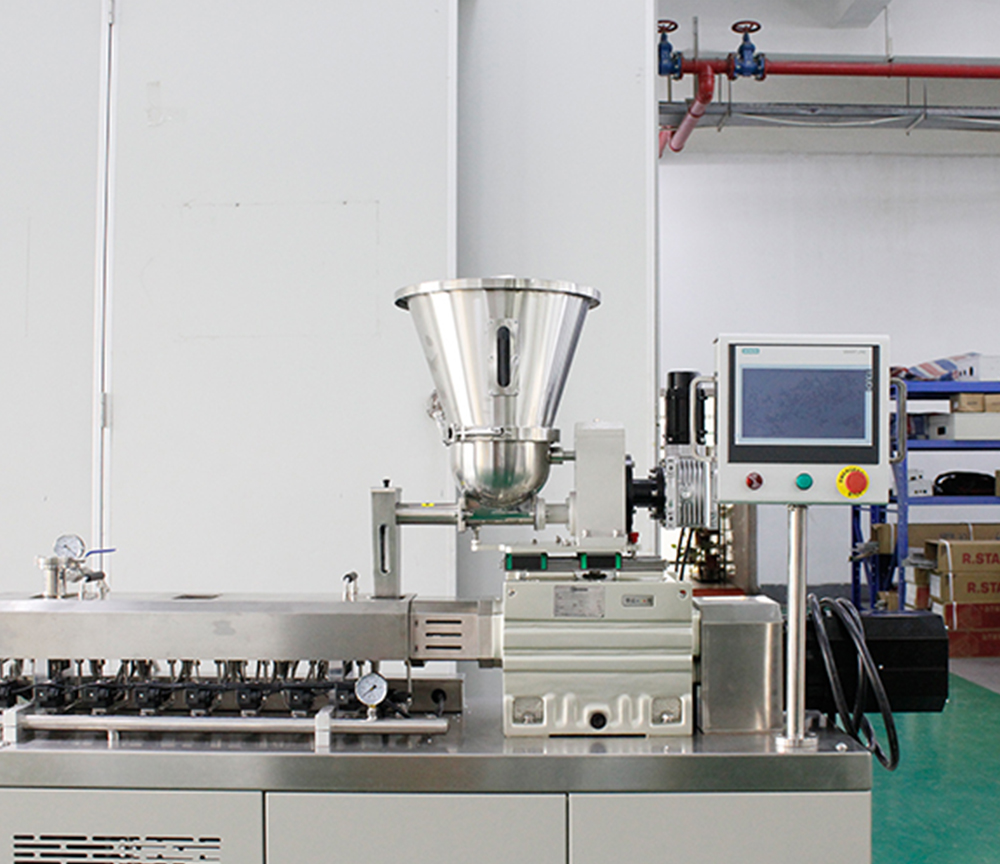

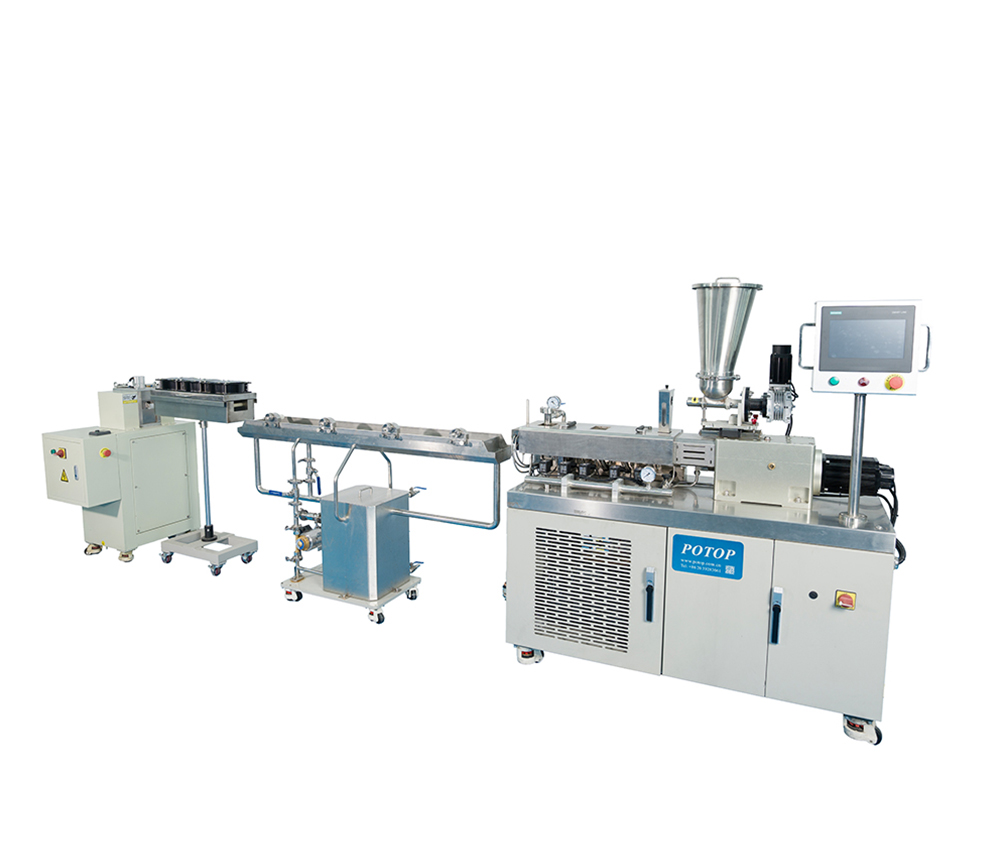

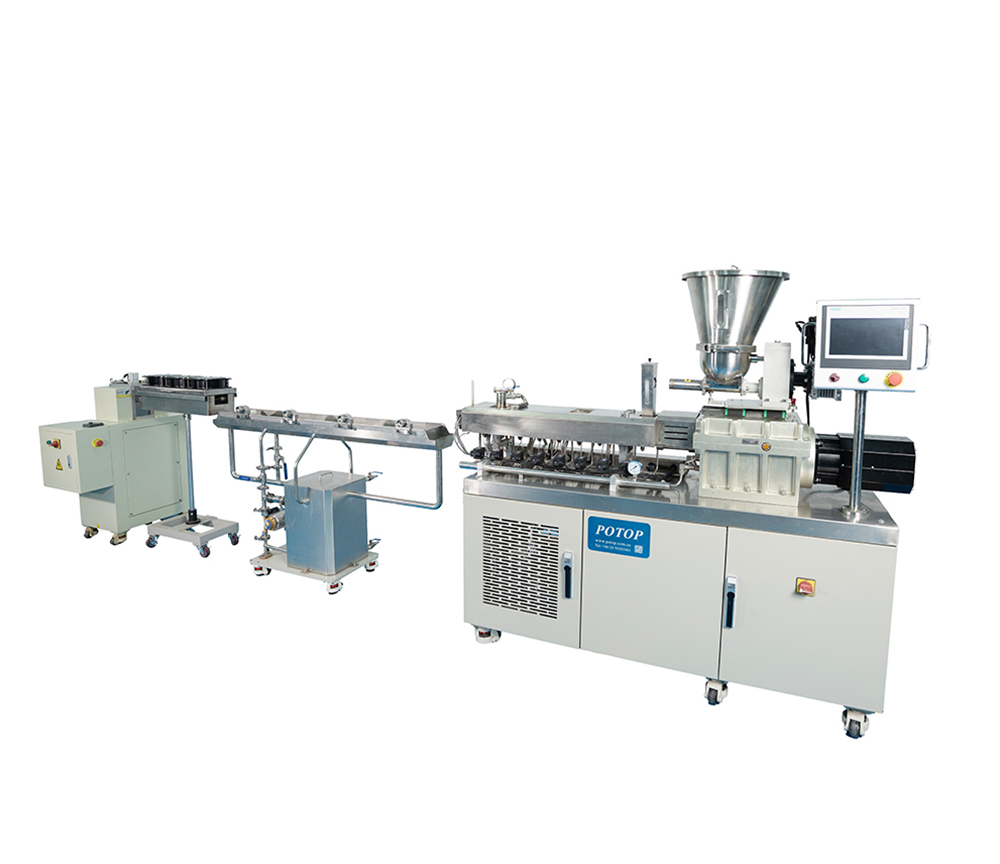

The Three Screw Extrusion Granulation Line by POTOP is a high-performance solution designed for efficient granulation of various materials, including PP, PE, PVC, and TPE. Engineered for precision and reliability, this compact yet robust machine is ideal for industrial applications requiring consistent output and quality.
Ø Compared with twin-screw extruders, the meshing zones are multiplied, delivering superior mixing and dispersion performance.
Ø Modular screw structure, customizable for experimental process requirements
Ø Servo motor-driven screws for stepless precision speed adjustment and stable operation

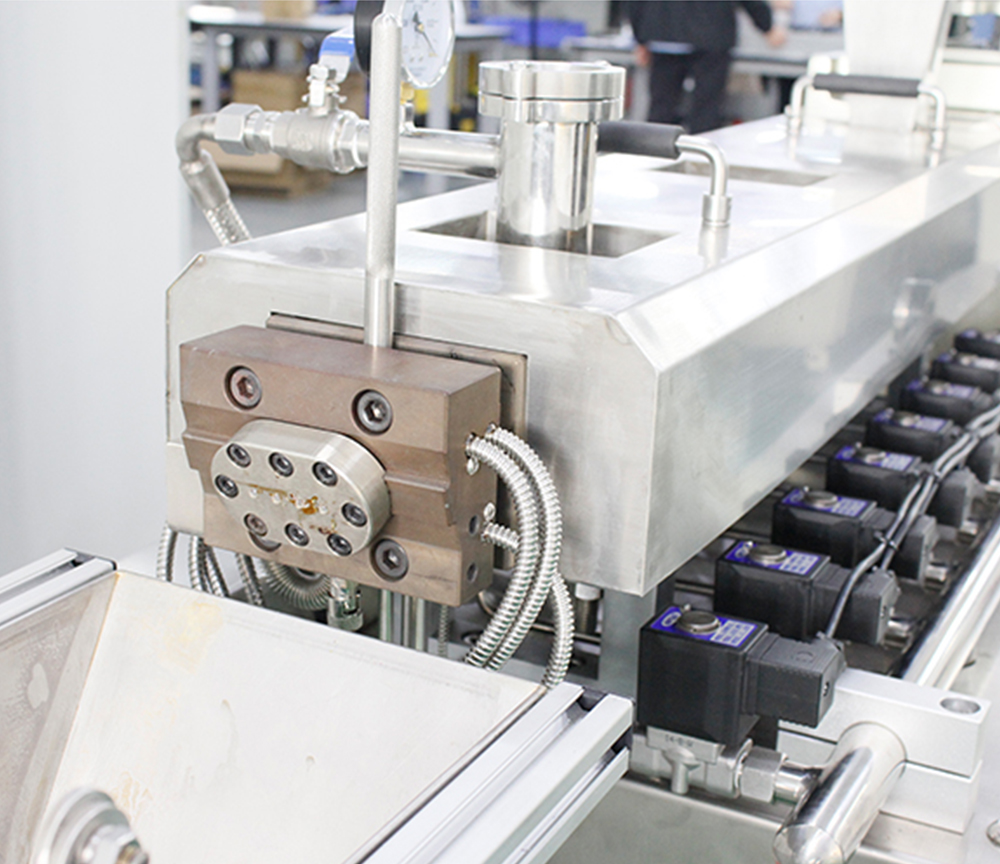

Ø Split-type barrel, quick-open head, and screen changer for efficient material cleaning
Ø Integrated vacuum exhaust, cooling system, and compact host design
Ø Industrial-grade PLC and HMI for stable operation and user-friendly touch control
Ø Real-time measurement and graphical display of critical experimental data for easy monitoring
Ø Optional melt pump for high-precision, high-pressure extrusion
Ø Calendering experiments for polymer materials
Ø Research and optimization of calendering processes and parameters
Ø Performance testing of new materials in calendaring
Ø Filling, blending, modification, and reinforcement experiments for polymer materials
Ø Preparation of glass fiber/carbon fiber-reinforced composites
Ø Granulation of organic/inorganic materials (e.g., masterbatch, carbon powder, magnetic powder)
Ø R&D of ultra-high molecular weight polyethylene (UHMWPE) diaphragm materials
Ø Filling, blending, modification and enhancement experiments of polymer materials
Ø Preparation of new glass fiber and carbon fiber reinforced materials
Ø Granulation of new organic/inorganic materials such as masterbatch, toner, magnetic powder, etc
Ø R&D of new materials for ultra-high molecular weight polyethylene (UHMWPE) separators
Model | MGTL-16/40 |
Serial No. | MGT-001 |
Applicable Materials | Various polymers, organic/inorganic mixtures |
Screw Diameter | φ16mm |
Screw L/D Ratio | 40 |
Screw Speed | 0-400 rpm |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5%FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Strand Count | 2 |
Pellet Length | 3±0.2 mm |
Pellet Diameter | φ1-4 mm |
Cutter speed | 0-800 rpm |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling water | Tap water (not required for air cooling) |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated power | Approx. 13 kW |
Dimensions (L×W×H) | 4800 mm×950 mm×1670 mm |
Net Weight | Approx. 950 kg |
Model | MGTL-22/40 |
Serial No. | MGT-002 |
Applicable Materials | Various polymers, organic/inorganic mixtures |
Screw Diameter | φ21.7mm |
Screw L/D Ratio | 40 |
Screw Speed | 0-600 rpm |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5%FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Strand Count | 4 |
Pellet Length | 3±0.2 mm |
Pellet Diameter | φ1-4 mm |
Cutter speed | 0-800 rpm |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling water | Tap water (not required for air cooling) |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated power | Approx. 25 kW |
Dimensions (L×W×H) | 4800 mm×950 mm×1800 mm |
Net Weight | Approx. 1300 kg |
