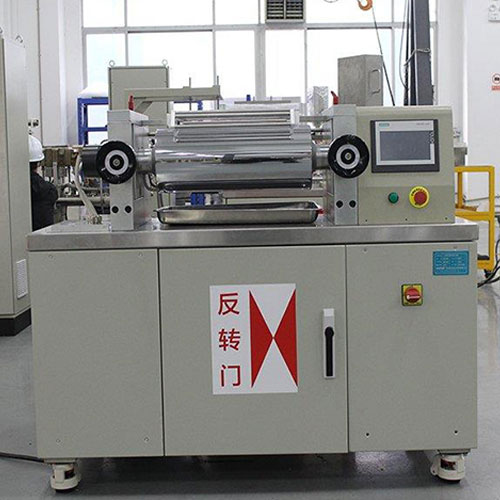

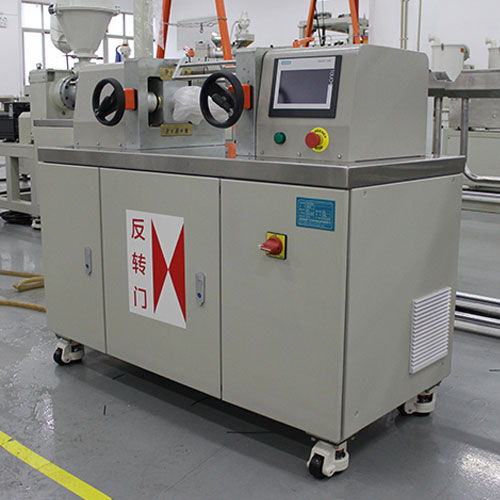

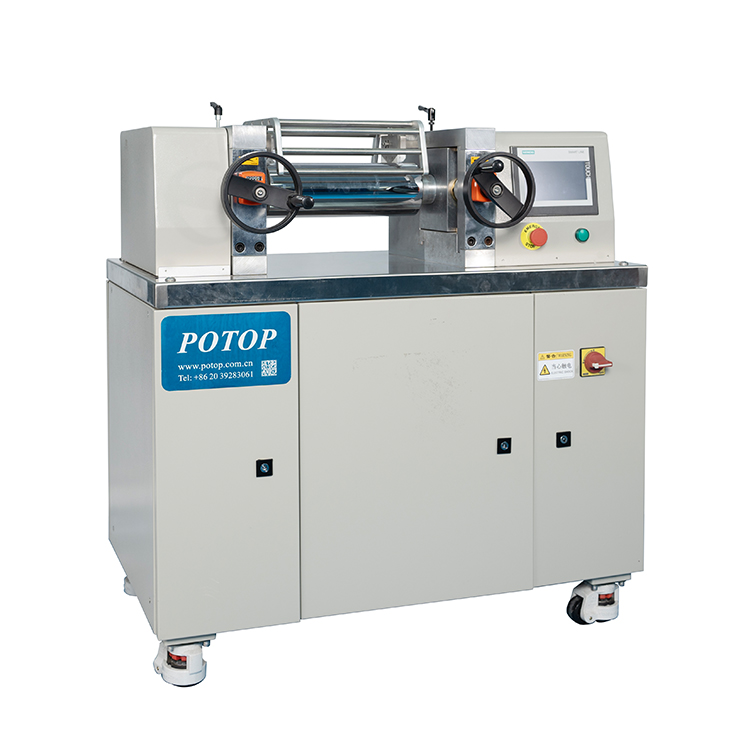

POTOP's two roll open mixing mill is engineered for advanced material research in laboratories, specializing in rubber and plastic compounding. This compact yet powerful device stands out with precise speed control, enabling users to simulate different mixing intensities for optimal material homogeneity.
Ø Independent servo motor drive for front and rear rollers, stable operation with adjustable speeds

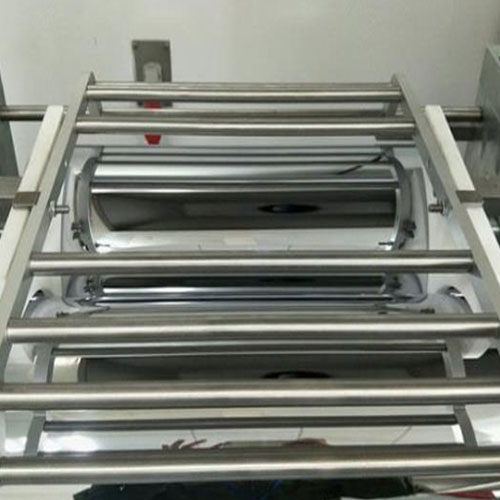

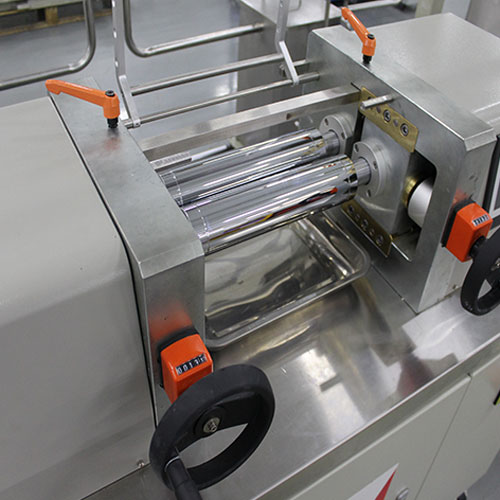

Ø Hard chrome-plated mirror rollers, smooth surface with wear and corrosion resistance
Ø Standard electric heating temperature control system for expanded process and material adaptability
Ø Computer-based measurement/control system with user-friendly interface for enhanced functionality and ease of operation
Ø Real-time measurement and graphical display of critical data for convenient monitoring
Ø Mechanical and electrical multi-layer protection to ensure operator safety
Ø Optional liquid medium (oil/water) roller temperature regulator
Ø Rubber and plastic formula design
Ø Mixing and plasticizing of rubber and plastics
Ø Mixing and vulcanization of rubber
Ø Extrusion molding of common rubber materials
Ø Preparation of rubber and plastic sheets
Ø Surface treatment of plastic and rubber sheets
Ø Optimization and control of open-mill process parameters for rubber
Model | LRHI-12/35 |
Serial No. | LRH-001 |
Applicable Materials | Rubber, PVC, etc |
Mixed Capacity | 0.2-0.5 kg/time |
Roller Diameter | φ120mm |
Roller Face Width | 350mm |
Roller Working Face Width | 300mm |
Roller Gap | 0.1-5mm |
Roller Speed | 0-30rpm |
Temperature Control Range | RT -350°C |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 9 kW (including roller electric heating) |
Dimensions (L×W×H) | 1070 mm×615 mm×1160 mm |
Net Weight | Approx. 300 kg |
