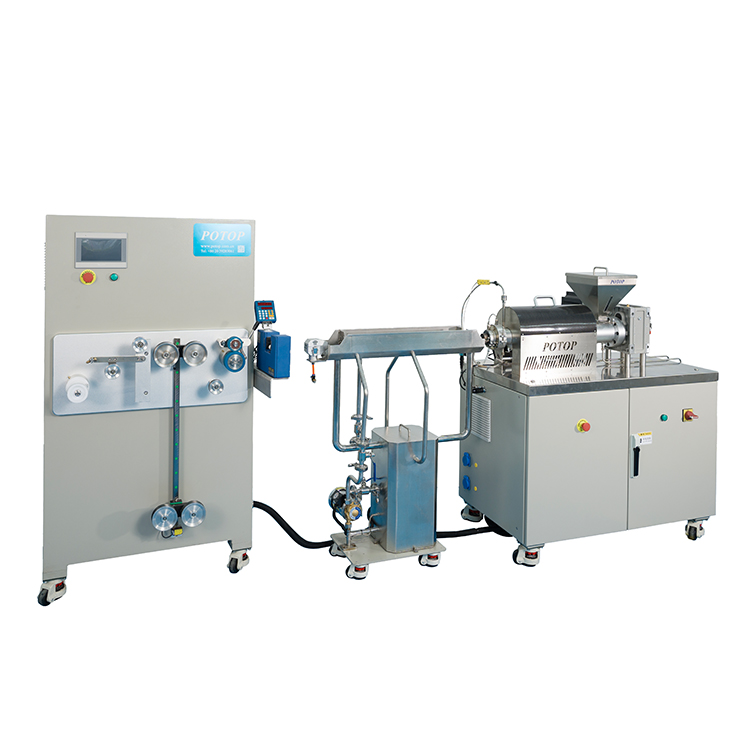

Designed for laboratory polymer material research, this advanced lab mini 3d filament production line enables efficient small-scale production of pipes with precise control. It handles various materials like PE, PP, and biodegradables, featuring intelligent PLC operation for stable performance.
Ø Screw servo drive with stepless precise speed regulation for stable extrusion
Ø Traction roller servo drive combined with closed-loop control via diameter gauge ensures high filament diameter accuracy
Ø Industrial-grade PLC and HMI integration for stable operation and user-friendly touchscreen interaction
Ø Ergonomic structural design for ease of operation
Ø Optional neat winding function
Ø Performance testing of polymer material filament extrusion and molding
Ø Plastic filament formula design
Ø Optimization and control of extrusion process parameters for plastic filaments
Ø Process optimization, cost control, and small-scale prototyping
Model | SESL-20/02 |
Serial No. | SES-001 |
Applicable Materials | PLA, ABS, PETG, TPU, etc |
Screw Diameter | φ20 mm |
Screw L/D Ratio | 28 |
Screw Speed | 0-120 rpm |
Line Speed | 0-10 m/min |
Filament Diameter | φ1.75 mm |
Diameter Accuracy | ±0.02 mm |
Pressure Measurement Range | 0-50 MPa |
Pressure Measurement Accuracy | 0.5%FS |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar (dry, oil-free) |
Cooling Water | Soft water，ΔP: 2.5–4.0 bar |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 8kw |
Dimensions (L×W×H) | 3020 mm×1050 mm×1520 mm |
Net Weight | Approx. 600 kg |
