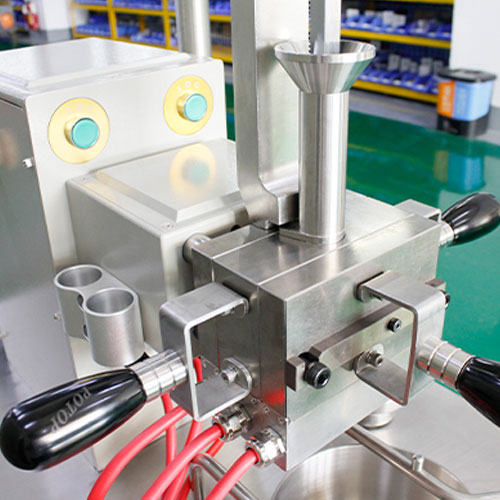

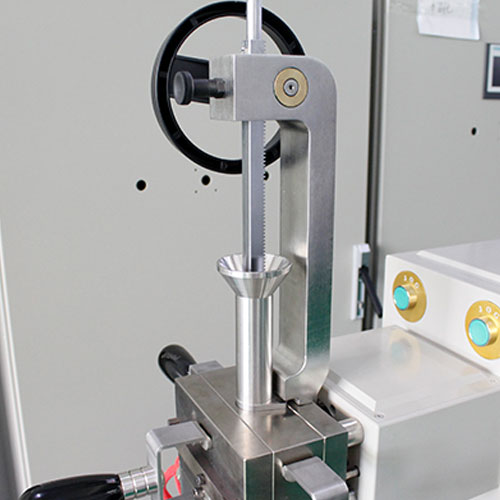

Torque rheometer is suitable for testing the processing performance of plastic materials, with precise torque measurement and stable temperature control, helping users study material properties.
Ø High precision torque and temperature measurement, sensitive to subtle formula differences
Ø Non-contact dynamic torque sensor for accurate and repeatable torque measurement
Ø Modular structure design with detachable mixing chamber and rotors for easy cleaning
Ø Mixing chamber and rotors made of high-performance anti-corrosion and wear-resistant materials
Ø High-performance servo motor-driven rotors with wide speed range and stable rotation
Ø Proprietary control software with powerful functionality and user-friendly interface
Ø Ergonomic design for convenient operation
Ø Polymer material formulation design
Ø Raw material performance and quality inspection
Ø PVC melt characteristic testing
Ø PVC dry blend plasticizer absorption testing
Ø Thermal and shear stability testing for thermoplastic materials
Ø Formulation design for sintering materials (e.g., metals, ceramics, inorganic/organic powders)
Model | RTOI-06/02 |
Serial No. | RTO-001 |
Applicable Materials | PP,PE,PVC and other plastics, rubber, inorganic/organic mixtures, etc |
Mixing Chamber Volume | 55 mL |
Rotor Type | Standard: Roller Optional: Banbury, Cam, Sigma |
Rotor Speed | 0-187.5 rpm |
Rotor Speed Ratio | 3:2 |
Torque Measurement range | 0-200 Nm |
Torque Measurement Accuracy | 0.5%F.S |
Temperature Control Range | RT -350°C |
Temperature Control Accuracy | ±1℃ |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Compressed Air Supply | 6–8 bar, dry and oil-free |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated power | Approx.4.5 kW |
Dimensions (L×W×H) | 1173 mm×610 mm×1578 mm |
Net Weight | Approx. 250 kg |
